In November 2021, Waze released the road width feature. Road width provides the Falcon snapper with more precise spatial data, helping it more accurately determine which road a vehicle is travelling on when multiple segments are close together.

This is particularly useful in situations where multiple segments originate from the same point and remain close together as they diverge, such as forks, ramps, or parallel roads.

In simple terms: road width helps Falcon resolve ambiguity. When several segments originate from the same point and are close together, accurate road width improves Falcon’s ability to determine the correct path of travel.

Permissions

Please refer to country specific permissions.

Edit permissions are also limited by the lock level of the segment. However, all editors can view the road width settings.

When should road width be configured?

Road width should be configured only in situations where Falcon may struggle to determine which segment a vehicle is on.

In most cases, this occurs where multiple segments originate from the same segment and slightly diverge. The following scenarios are the most common:

  1. Forking points - such as motorway exits or at-grade connection slip lanes.
  2. Parallel roads - such as service roads, frontage roads, or ramps that run close to another road for some distance.

In the case of parallel roads, road width should be mapped on all segments that remain close to each other until the separation between them is large enough that snapping ambiguity is unlikely.

Road width is mostly used by Falcon at the beginning of segments. The configured width therefore primarily affects snapping behaviour near the start of that segment.

Editors should not split segments solely to adjust road width.

When should road width not be configured?

Road width does not need to be configured everywhere. While it may support more accurate map representation in the future, it is generally unnecessary for snapping outside of common scenarios above.

How to access road width in WME?

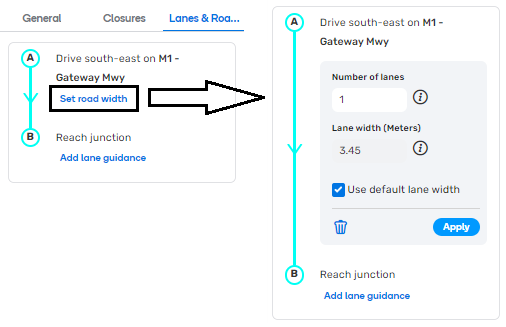

The road width interface can be accessed by selecting a segment and opening the “Lanes & Road Width” tab in the edit panel. Select “Set road width”, enter the requried values, and select “Apply”.

Adding road width to a segment.

Guidance on road width

Number of lanes

In the editor interface, road width is defined using number of lanes and lane width.

Enter the number of lanes that are present at the start of the segment.

Because Falcon primarily uses this information near the segment origin, the value does not need to represent the width of the entire segment.

For example, if a segment briefly has two lanes at its start before narrowing to one lane, setting the road width to two lanes will not cause any issues.

Lane width

Unless the lane width is significantly different from the default value for that road type, use the default lane width and do not modify this field.

If the lane width differs substantially from the default, enter the approximate width of a single lane in metres.

Note: Reports that Waze is slow to recognise a route change at a fork may indicate that the configured road width is inaccurate and should be reviewed. In these situations, the ruler tool in WME can be used to estimate the road’s physical width.

Examples

Forking points

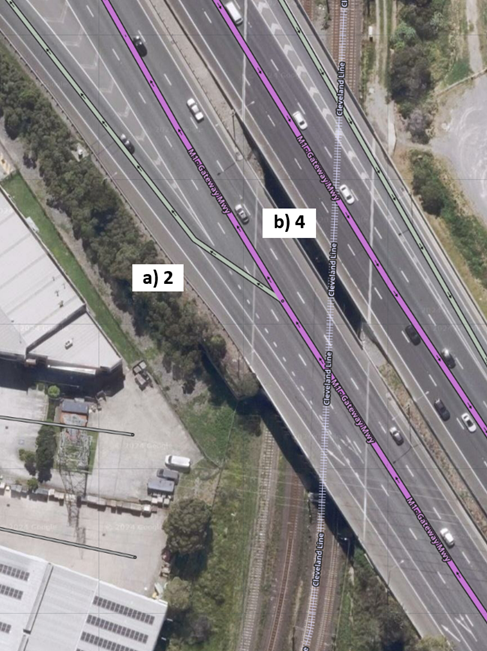

The motorway has an exit towards the left.

a) The exit ramp is two lanes wide. The road width is set to two lanes.
b) The continuing motorway segment is four lanes wide. The road width is set to four lanes.

Example: Set road width at a forking point on the continuing segment and exit ramp.

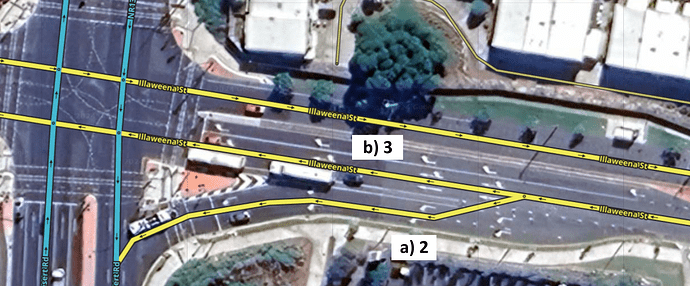

The road continues west with an at-grade connection slip lane mapped at this intersection.

a) The slip lane is two lanes wide. The road width is set to two lanes.
b) The continuing primary street segment is three lanes wide. The road width is set to three lanes (even though there is a dedicated right turn lane).

Example: Road width set on the continuing segment and the slip lane.

Parallel roads

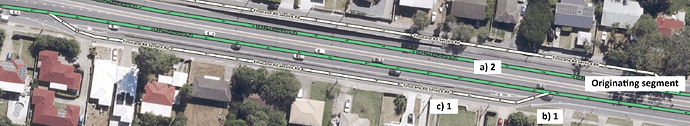

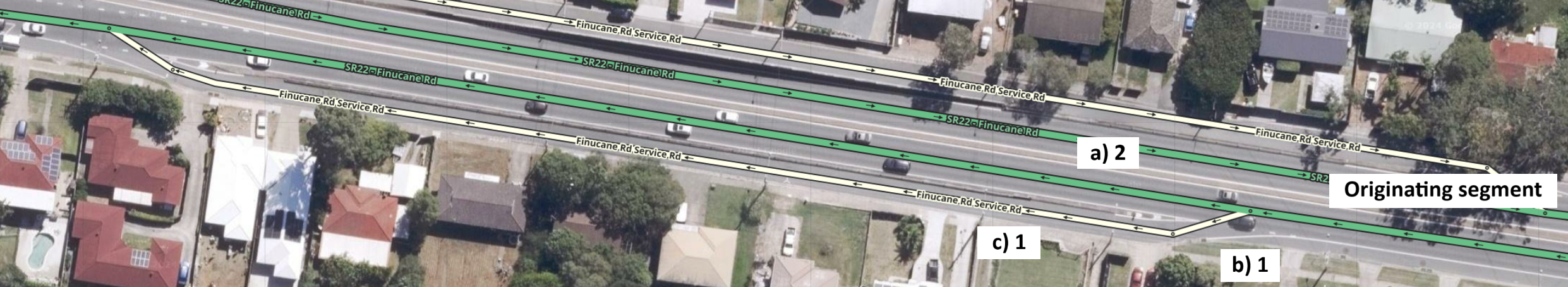

Below is a classic example of a service road diverging from a major highway and remaining parallel to it.

Road width determination where two segments diverge from the same originating segment and remain close together.

The originating segment that segments A and B connect to is three lanes wide and does not require road width configuration.

a) The continuing major highway segment is three lanes wide. The road width is set to three lanes.
b) The service road segment is one lane wide. The road width is set to one lane.
c) Additional service road segments that remain close to the highway should also be set to one lane.

Without road width, Falcon relies on default values which may not reflect the actual physical separation between roads. If GPS accuracy is slightly offset, Falcon may incorrectly snap the vehicle to the nearby highway instead of the service road. Correctly configured road width helps Falcon distinguish between these nearby segments.
